Synthetic Image Generator for YOLO models#
This notebook generates synthetic images for the training, validation and testing. The output of this notebook is required by the zaxis_train.ipynb notebook.
Authors(s): Diptabrata Paul, Martin Fränzl, edited by Till Pfaff
Show code cell source
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patches as patches
from matplotlib import colormaps as cmaps
import os
from tqdm import tqdm
import yaml
from importlib import reload # Python 3.4+
import pandas as pd
import image_generator as ig
from yundon_functions import *
pi = np.pi
from multiprocessing import Pool
from PIL import Image
from cv2 import resize
from itertools import repeat
from matplotlib.patches import Rectangle, Circle
# %matplotlib widget
import cv2
def plot_result(ax,img,objects, vmin=1.95e4, vmax=2.05e4):
if isinstance(img, PIL.Image.Image) or isinstance(img, np.ndarray):
pass
elif(type(img) == str):
img = PIL.Image.open(img)
ax.imshow(img,cmap="grey",vmin=vmin,vmax=vmax)
ax.axis("off")
for i,obj in objects.iterrows():
l,x,y,w,h = obj[:5]
rect = Rectangle((x-0.5*w,y-0.5*h),h,w, linewidth=1, edgecolor="yellow", facecolor='none')
tx,ty = rect.get_xy()
ax.add_patch(rect)
tx+=6
ty-=12
circle = Circle((x,y),1, facecolor="red",edgecolor="red")
ax.add_patch(circle)
if l == "Ripple":
ax.text(tx,ty,f"{obj["z"]*0.134:.3f}",fontsize="small",bbox=dict(facecolor='white', alpha=0.5,))
Display single image for parameter adjustments#
# Configuration for the image generation
reload(ig)
# each object type has a dictionary
ripple_params = {"label":"Ripple", "z":[0,1567], "i":("gaussian", [0.75,0.25]), "n":(30,90)}
spot_params = {"label":"Spot", "i":("gaussian", [2**15]), "s":8, "n":(30,90)}
janus_params = {"label":"Janus", "i":("gaussian", [2**15,10000]), "s":[2,4],"r":[2,5], "n":(30,90)}
# the object dictionaries are collected in a list
parameter_list = [ripple_params]
# Load the downsampled reference stack
downsampled_refstack = (np.load("refstack256.npy"))-2e4 # shape (1568, 256,256)
print("Downsampled reference stack shape:", downsampled_refstack.shape)
x0, y0 = 64.4*2, 63.7*2 # Center of the reference stack
image_size = 1024,1024 # Dimension
distance = 0 # Min distance between points
offset = 0 # Boundary padding
noise_range = [100,110] # Range of noise
objects = ig.getRandom(parameter_list, image_size, distance=distance, offset=offset)
plt.close("all")

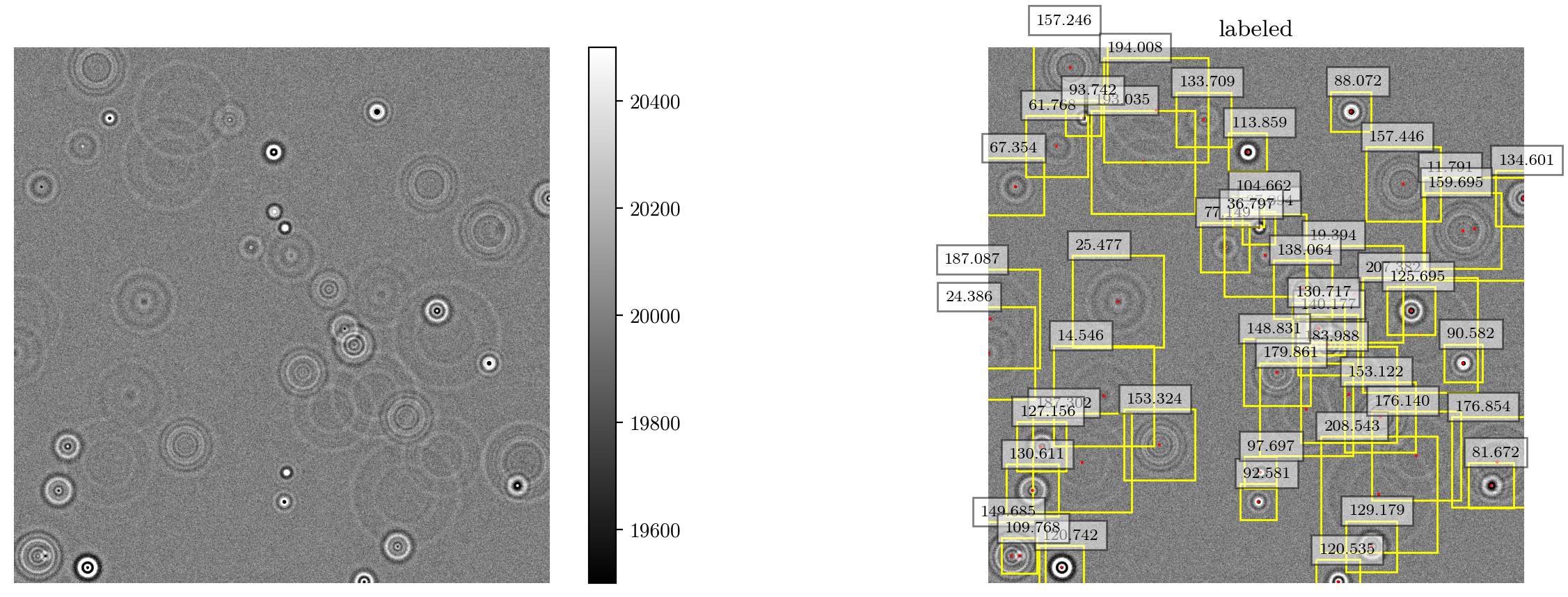

plt.figure(figsize=(16,5))
image,_ = ig.generateImage(objects, image_size, refstack=downsampled_refstack, refstack_center=(y0,x0),noise=noise_range, background=2e4)
ax = plt.subplot(1,2,1)
ax.axis("off")
plt.imshow(image, cmap="grey",vmin=1.95e4,vmax=2.05e4)
plt.colorbar()
ax = plt.subplot(1,2,2)
plt.title("labeled")
plot_result(ax,image,objects)
ax.axis("off")
# plt.tight_layout()
plt.show()
Downsampled reference stack shape: (1568, 256, 256)
For further information, also have a look at the reference for the image_generator module.
Generate images for training, validation and testing#
subdir = '../datasets/Dataset_ripples256/'
nimages = [15000,5000,1000]
folders = ["train", "val_slow", "val"]
# test_noiselevels = noise_range*3
# resize_to = 540,640 #subsequent resize to have correct scale
# levels = 20
# nimages = [1000]*levels
# test_noiselevels = list(np.linspace(*snr_range, levels))# use noise range for train and val, and ascending noise levels for test
# folders = [f'test_snr{i}' for i in test_noiselevels]
import time
reload(ig)
if not os.path.exists(subdir):
os.mkdir(subdir)
l_dir = subdir + 'labels'
i_dir = subdir + 'images'
if not os.path.exists(i_dir):
os.mkdir(i_dir)
if not os.path.exists(l_dir):
os.mkdir(l_dir)
for i, prefix in enumerate(folders):
image_dir = i_dir + '/' + prefix + '/'
if not os.path.exists(image_dir):
os.mkdir(image_dir)
label_dir = l_dir + '/' + prefix + '/'
if not os.path.exists(label_dir):
os.mkdir(label_dir)
for i, prefix in enumerate(folders):
# print(f"generating {prefix} data... ",end=" ", flush=True)
vectorized_index = np.vectorize(lambda labels,item: labels.index(item))
rngs = []
def init():
# Initialize the random number generator for each process
global rng #the rng variable is global so that it can be used in the call function
rng = np.random.default_rng()
time.sleep(rng.uniform(0,2))
def call(j):
labelname = l_dir + '/' + prefix + '/' + 'image_{:05d}.txt'.format(j,2)
fname = i_dir + '/' + prefix + '/' + 'image_{:05d}.tif'.format(j,2)
objects = ig.getRandom(parameter_list, image_size, rng=rng)
if(len(objects) == 0):
f = open(labelname, "w")
f.write("\n")
f.close()
return
image, info_dict = ig.generateImage(objects, image_size, refstack=downsampled_refstack, refstack_center=(y0,x0), noise=noise_range, rng=rng)
image = (image).astype(np.uint16) #cast image to 16 bit uint for tiff
imgshape = image.shape
# if(resize_to == image_size):
# image = Image.fromarray(image).save(fname, quality=100)
# else:
# image = Image.fromarray(image).resize(resize_to[::-1]).save(fname, quality=100)
image = Image.fromarray(image).save(fname, quality=100)
objects[["x","w"]] /= image_size[1] # scale x and w to [0,1]
objects[["y","h"]] /= image_size[0] # scale y and h to [0,1]
if "z" in objects.columns: # scale z to µm for type ripples
objects["z"] = (objects["z"]-761)*0.134
# turn label into int:
objects["label"]=pd.factorize(objects["label"])[0]
# add keypoint coordinates
objects[["kpt_x", "kpt_y"]] = objects[["x", "y"]]
# get labels
# print(class_id)
np.savetxt(labelname, objects[["label", "x", "y", "w", "h", "z", "kpt_x", "kpt_y"]].values, fmt='%g')# label x y w h z x y
with Pool(initializer=init) as pool:
for _ in tqdm(pool.imap_unordered(call,range(nimages[i])),total=nimages[i], desc=prefix):
pass
global rng
rng = np.random.default_rng()
# for j in tqdm(range(nimages[i]), desc=prefix):
# call(j)
# print(annotations)
# ig.exportConfig(subdir + 'info.txt', nimages, label_list, parameters_list, n_list, snr_range, i_range, distance, offset)
train: 100%|██████████| 15000/15000 [22:41<00:00, 11.02it/s]
val_slow: 100%|██████████| 5000/5000 [05:28<00:00, 15.20it/s]
val: 100%|██████████| 1000/1000 [00:27<00:00, 36.45it/s]
Generate .yaml file:#
file_path = '../datasets/ripples256.yaml'
dict = {}
dict["train"]=os.getcwd() + '/' + subdir + "images/" + "train"
dict["val"]=os.getcwd() + '/' + subdir + "images/" + "val"
dict["val_slow"]=os.getcwd() + '/' + subdir + "images/" + "val_slow"
dict["kpt_shape"] = [1,2]
dict["num_extra_parameters"] = 1
dict["extra_param_names"] = ["z"]
dict['nc'] = 1
dict['names'] = ["Ripple"]
with open(file_path, 'w') as file:
yaml.dump(dict, file, default_flow_style=True)
subdir = '../datasets/Dataset_spots/'
# folders = ["val_real"]
folders = [f'test_snr{i}' for i in test_noiselevels]
levels_dir = subdir+"/levels"
if not os.path.exists(levels_dir):
os.mkdir(levels_dir)
for folder in folders:
file_path = levels_dir + f'/dataset_{folder}.yaml'
print(file_path)
dict = {}
i_dir = os.getcwd() + '/' + subdir + "images/" + folder
dict["train"]=os.getcwd() + '/' + subdir + "images/" + "train"
dict["val"]=i_dir
dict["kpt_shape"] = [1,2]
dict["num_extra_parameters"] = 2
dict['nc'] = 1
dict['names'] = ["Spot"]
with open(file_path, 'w') as file:
yaml.dump(dict, file, default_flow_style=True)
../datasets/Dataset_spots//levels/dataset_test_snr1.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr2.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr3.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr4.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr5.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr6.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr7.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr8.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr9.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr10.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr11.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr12.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr13.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr14.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr15.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr16.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr17.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr18.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr19.0.yaml
../datasets/Dataset_spots//levels/dataset_test_snr20.0.yaml
Transform the images by yundon into usable format#
subdir = '../datasets/Dataset_subpixel/'
nimages = [1196]
folders = ["val_real"]
test_noiselevels = noise_range*3
resize_to = 540,640 #subsequent resize to have correct scale
# levels = 10
# nimages = [1000]*levels
# folders = [f'test{i}' for i in range(levels)]
# test_noiselevels = list(np.linspace(*noise_range, levels))# use noise range for train and val, and ascending noise levels for test
import time
reload(ig)
if not os.path.exists(subdir):
os.mkdir(subdir)
l_dir = subdir + 'labels'
i_dir = subdir + 'images'
if not os.path.exists(i_dir):
os.mkdir(i_dir)
if not os.path.exists(l_dir):
os.mkdir(l_dir)
for i, prefix in enumerate(folders):
image_dir = i_dir + '/' + prefix + '/'
if not os.path.exists(image_dir):
os.mkdir(image_dir)
label_dir = l_dir + '/' + prefix + '/'
if not os.path.exists(label_dir):
os.mkdir(label_dir)
for i, prefix in enumerate(folders):
# print(f"generating {prefix} data... ",end=" ", flush=True)
vectorized_index = np.vectorize(lambda labels,item: labels.index(item))
rngs = []
def init():
global rng
rng = np.random.default_rng()
time.sleep(rng.uniform(0,2))
def call(j):
labelname = l_dir + '/' + prefix + '/' + 'image_{:05d}.txt'.format(j,2)
fname = i_dir + '/' + prefix + '/' + 'image_{:05d}.tif'.format(j,2)
x,y,z = gt_yundon(j)
bx,by,bw,bh = get_bbox(x.copy(),y.copy(),z.copy())
x*=640
y*=540
# print(j)
image = np.array(open_yundon_img(j).copy())
if(j==1):
print((z-0.5)*400)
# x+=0.5 #account for downsampling artifact
# y-=0.25
# plt.imsave(fname, image, cmap='gray',vmin=0,vmax=1)
image = (image).astype(np.uint16) #cast image to 16 bit tiff
imgshape = image.shape
image = Image.fromarray(image).resize(resize_to[::-1]).save(fname, quality=100)
x /= resize_to[1]
y /= resize_to[0]
bw /= resize_to[1]*2
# by /= resize_to[0]
# bw=bh = (np.abs((z-0.5)*400)/0.161*0.21+55)
# bboxes = np.array([x* resize_to[1],y* resize_to[0],bx,by]).T
# z = (z-761)*0.134/400+0.5
class_id = np.zeros_like(x)
i = np.ones_like(x)
# print(class_id)
# print(class_id.shape,z.shape, x.shape, y.shape)
# print([x.shape for x in [class_id,bbox_x.clip(0,1),bbox_y.clip(0,1),bbox_w.clip(0,1),bbox_h.clip(0,1),z.clip(0,1), x.clip(0,1), y.clip(0,1)]])
np.savetxt(labelname, np.column_stack([class_id,bx.clip(0,1),by.clip(0,1),bw.clip(0,1),bh.clip(0,1),z,i, x.clip(0,1), y.clip(0,1)]), fmt='%g')
with Pool(initializer=init,processes=1) as pool:
for _ in tqdm(pool.imap_unordered(call,range(nimages[i])),total=nimages[i], desc=prefix):
pass
# print(annotations)
# ig.exportConfig(subdir + 'info.txt', nimages, label_list, parameters_list, n_list, snr_range, i_range, distance, offset)
val_real: 0%| | 1/1196 [00:01<28:51, 1.45s/it]
[-15801.13156345 579.7602456 -16366.88604292 489.42727413
-13953.8397447 -4430.50825574 -31279.1505995 -4637.6961755
-7527.44992173 -6320.78606597 439.84683771 -6876.80315117
-16644.76375831 -16929.63819839 -18771.71273453 -19449.2355251
-21348.07370153 -20591.54211378 -20426.03178545 -18699.15523257
-26901.10239187 -4374.80575631 -28712.20969367 -29812.38506752
-41121.84826451 -42703.26483254 -40598.01261732 -38970.48272867
-40396.09169238]
val_real: 100%|██████████| 1196/1196 [00:13<00:00, 88.81it/s]
some patches and tests:#
# import PIL
# from matplotlib.patches import Rectangle
# def plot_gt(path,ax):
# data=np.loadtxt(path.replace("images", "labels").replace("jpg","txt").replace("tif","txt")).T
# # print(data)
# print(data.shape)
# cls = data[0]
# bboxes = data[1:5].T
# z = data[5]
# x_p,y_p = data[6:]
# # print(bboxes)
# img = PIL.Image.open(path)
# img = ax.imshow(np.array(img),cmap="grey", vmin=1.9e4, vmax=2.1e4)
# ax.axis("off")
# for bbox,z_value in zip(bboxes,z):
# x,y,w,h = bbox*512
# rect = Rectangle((x-0.25*w,y-0.25*h),h,w, linewidth=1, edgecolor="blue", facecolor='none')
# ax.text(*rect.get_xy(),f"z={z_value:.3f}")
# ax.add_patch(rect)
# return bboxes,z, img
# plt.clf()
# _,_,img = plot_gt("Dataset/images/test0/image_00006.tif",plt.gca())
# plt.colorbar(img)
# plt.show()
(8, 5)
# np.r_[:8]
# def random_image():
# idx = np.random.randint(0,len(test_images))
# path = dataset_path+"/"+test_images[idx]
# del test_images[idx]
# return path
# dataset_path = "datasets/Dataset_yundon/images/val_real"
# # dataset_path = "../ultralytics/data_gen/Dataset_hard/images/val"
# test_images = os.listdir(dataset_path)
# import os
# for i in range(173):
# img_origin = random_image()
# label_origin = img_origin.replace("images","labels").replace(".tif", ".txt")
# img_dest = img_origin.replace("val", "test")
# label_dest = label_origin.replace("val", "test")
# os.replace(img_origin, img_dest)
# os.replace(label_origin, label_dest)
# import PIL.Image
# test_path = dataset_path.replace("val", "test")
# for img in os.listdir(test_path):
# imgpath = test_path+"/"+img
# label_path = imgpath.replace(".tif", ".txt").replace("images", "labels")
# image = PIL.Image.open(imgpath)
# image = image.rotate(180)
# # print(np.array(image).shape)
# image.save(imgpath)
# image.close()
# labels = np.loadtxt(label_path).T
# labels[[1,2,6,7]] = 1-labels[[1,2,6,7]]
# np.savetxt(label_path, labels.T)

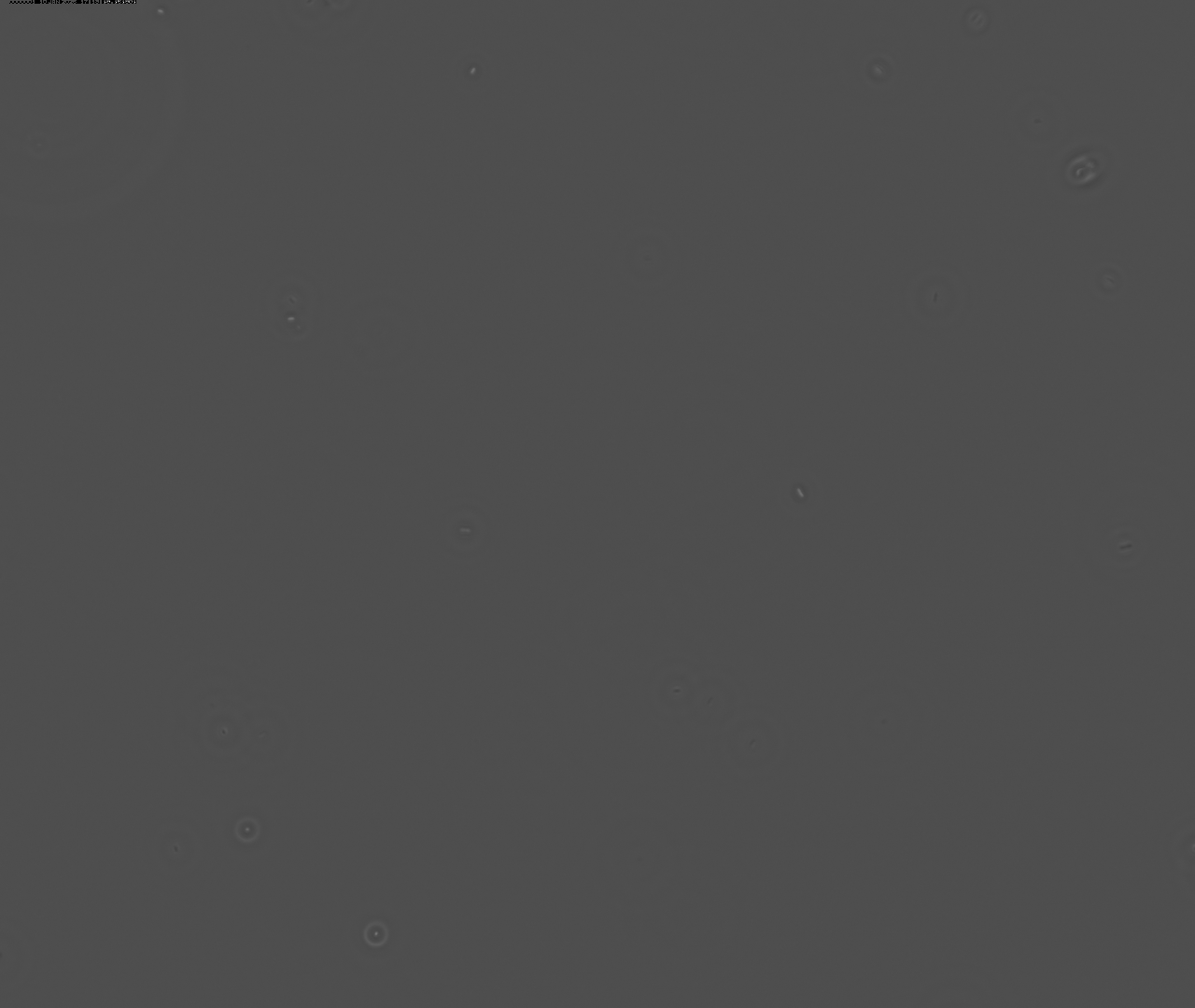

open_yundon_img(34)
