Tutorial: Train and evaluate a model on with images of spots#
Spot generation#
First, we need to generate our dataset. For this we use the data generator provided in the package.
Show code cell source
import numpy as np
import matplotlib.pyplot as plt
import sys
sys.path.append("..")
import matplotlib.patches as patches
from matplotlib import colormaps as cmaps
import os
from tqdm import tqdm
import yaml
from importlib import reload # Python 3.4+
import pandas as pd
import image_generator as ig
from yundon_functions import *
pi = np.pi
from multiprocessing import Pool
from PIL import Image
from cv2 import resize
from itertools import repeat
from matplotlib.patches import Rectangle, Circle
# %matplotlib widget
import cv2
from ultralytics.utils import ops
def plot_result(ax,img,objects, vmin=1.95e4, vmax=2.05e4):
if isinstance(img, PIL.Image.Image) or isinstance(img, np.ndarray):
pass
elif(type(img) == str):
img = PIL.Image.open(img)
ax.imshow(img,cmap="grey",vmin=vmin,vmax=vmax)
ax.axis("off")
for i,obj in objects.iterrows():
l,x,y,w,h = obj[:5]
rect = Rectangle((x-0.5*w,y-0.5*h),h,w, linewidth=1, edgecolor="yellow", facecolor='none')
tx,ty = rect.get_xy()
ax.add_patch(rect)
tx+=6
ty-=12
circle = Circle((x,y),1, facecolor="red",edgecolor="red")
ax.add_patch(circle)
if l == "Ripple":
ax.text(tx,ty,f"{obj["z"]*0.134:.3f}",fontsize="small",bbox=dict(facecolor='white', alpha=0.5,))
def plot_gt(path,ax,imgsz=[512,512],vmin=1.95e4,vmax=2.05e4):
data=np.atleast_2d(np.loadtxt(path.replace("images", "labels").replace("jpg","txt").replace("tif","txt"))).T
# print(data)
if(len(data)==0):
return plot_result(ax,path, np.empty(0),np.empty((0,4)),np.empty(0),np.empty((0,0)),vmin=vmin,vmax=vmax)
cls = data[0]
bboxes = data[1:5].T*(imgsz*2)
z = data[5]
kpts = data[7:].T*imgsz
# print(bboxes)
return plot_result(ax,path, cls,bboxes,z,kpts, vmin=vmin,vmax=vmax)
import image_generator as ig
spot_params = {"label":"Spot", "i":("gaussian", [2**15]), "s":8, "n":(30,90)} # Parameters for the image generator
parameter_list = [spot_params]
image_size = 540,640 # Dimension
distance = 20 # Min distance between points to avoid overlap
offset = 0 # Boundary padding
snr = 5
objects = ig.getRandom(parameter_list, image_size, distance=distance, offset=offset) # Generate object positions for test image
image,_ = ig.generateImage(objects, image_size,snr=float(snr), background=0) # Generate image with objects
# Plot test image
plt.close("all")
plt.figure(figsize=(16,5))
ax = plt.subplot(1,2,1)
ax.axis("off")
plt.imshow(image, cmap="grey")
plt.colorbar()
ax = plt.subplot(1,2,2)
plt.title("labeled")
plot_result(ax,image,objects, vmin=image.min(), vmax=image.max())
ax.axis("off")
# plt.tight_layout()

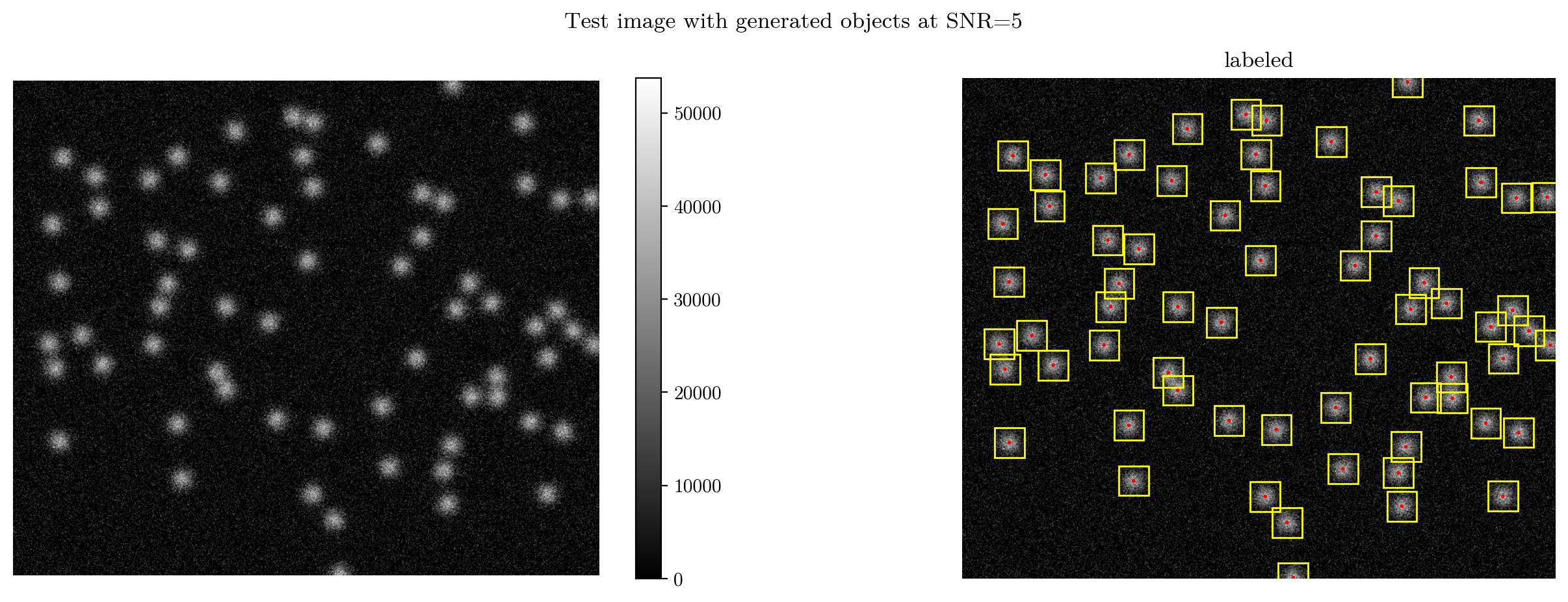

plt.suptitle(f"Test image with generated objects at SNR={snr}")
plt.show()
print(objects)
label x y w h i s
0 Spot 582.803059 450.646852 32 32 32767.310194 8
1 Spot 338.485862 378.792683 32 32 32767.390046 8
2 Spot 499.688936 344.170586 32 32 32768.818425 8
3 Spot 89.162469 103.972775 32 32 32765.541459 8
4 Spot 43.183581 156.771007 32 32 32768.041847 8
.. ... ... ... .. .. ... ..
61 Spot 179.588831 82.306793 32 32 32770.168981 8
62 Spot 470.131391 132.078602 32 32 32766.958940 8
63 Spot 327.914405 45.142683 32 32 32769.269676 8
64 Spot 287.459739 369.075568 32 32 32767.199348 8
65 Spot 356.549145 538.574278 32 32 32767.588308 8
[66 rows x 7 columns]
Now, let’s generate some training data!
subdir = '../datasets/Dataset_spots/'
nimages = [10000,1000, 10000,1000]
folders = ["train_snr8-12","val_snr8-12", "train_snr15-20","val_snr15-20"] #the names for our folders
snr_range = [[8,12], [8,12], [15,20], [15,20]] # SNR range for the training and validation sets
import time
reload(ig)
if not os.path.exists(subdir):
os.mkdir(subdir)
l_dir = subdir + 'labels'
i_dir = subdir + 'images'
if not os.path.exists(i_dir):
os.mkdir(i_dir)
if not os.path.exists(l_dir):
os.mkdir(l_dir)
for i, prefix in enumerate(folders):
image_dir = i_dir + '/' + prefix + '/'
if not os.path.exists(image_dir):
os.mkdir(image_dir)
label_dir = l_dir + '/' + prefix + '/'
if not os.path.exists(label_dir):
os.mkdir(label_dir)
for i, prefix in enumerate(folders):
vectorized_index = np.vectorize(lambda labels,item: labels.index(item))
rngs = []
def init():
# Initialize the random number generator for each process
global rng #the rng variable is global so that it can be used in the call function
rng = np.random.default_rng()
time.sleep(rng.uniform(0,2))
def call(j):
labelname = l_dir + '/' + prefix + '/' + 'image_{:05d}.txt'.format(j,2)
fname = i_dir + '/' + prefix + '/' + 'image_{:05d}.tif'.format(j,2)
objects = ig.getRandom(parameter_list, image_size, rng=rng, offset=offset, distance=distance)
if(len(objects) == 0):
f = open(labelname, "w")
f.write("\n")
f.close()
return
image, info_dict = ig.generateImage(objects, image_size , snr=snr_range, rng=rng)
image = (image).astype(np.uint16) #cast image to 16 bit uint for tiff
image = Image.fromarray(image).save(fname, quality=100) # save the current image file to disk
objects[["x","w"]] /= image_size[1] # scale x and w to [0,1]
objects[["y","h"]] /= image_size[0] # scale y and h to [0,1]
# turn label into int:
objects["label"]=pd.factorize(objects["label"])[0]
# add keypoint coordinates
objects[["kpt_x", "kpt_y"]] = objects[["x", "y"]]
np.savetxt(labelname, objects.values, fmt='%g')# save the labels to disk (in txt files) in the form: class x y w h intensity(unused) size(unused) kpt_x kpt_y
with Pool(initializer=init) as pool:
for _ in tqdm(pool.imap_unordered(call,range(nimages[i])),total=nimages[i], desc=prefix):
pass
global rng
rng = np.random.default_rng()
train_snr15-20: 100%|██████████| 10000/10000 [11:21<00:00, 14.68it/s]
val_snr15-20: 100%|██████████| 1000/1000 [01:08<00:00, 14.57it/s]
For testing, let’s also generate data for different SNR levels \(\in [1,20]\).
Show code cell content
subdir = '../datasets/Dataset_spots/'
snr_range = [1,20] # SNR range for the test set
levels = 20
nimages = [1000]*levels
test_noiselevels = list(np.linspace(*snr_range, levels))
folders = [f'test_snr{i}' for i in test_noiselevels]
import time
reload(ig)
if not os.path.exists(subdir):
os.mkdir(subdir)
l_dir = subdir + 'labels'
i_dir = subdir + 'images'
if not os.path.exists(i_dir):
os.mkdir(i_dir)
if not os.path.exists(l_dir):
os.mkdir(l_dir)
for i, prefix in enumerate(folders):
image_dir = i_dir + '/' + prefix + '/'
if not os.path.exists(image_dir):
os.mkdir(image_dir)
label_dir = l_dir + '/' + prefix + '/'
if not os.path.exists(label_dir):
os.mkdir(label_dir)
for i, prefix in enumerate(folders):
vectorized_index = np.vectorize(lambda labels,item: labels.index(item))
rngs = []
def init():
# Initialize the random number generator for each process
global rng #the rng variable is global so that it can be used in the call function
rng = np.random.default_rng()
time.sleep(rng.uniform(0,2))
def call(j):
labelname = l_dir + '/' + prefix + '/' + 'image_{:05d}.txt'.format(j,2)
fname = i_dir + '/' + prefix + '/' + 'image_{:05d}.tif'.format(j,2)
objects = ig.getRandom(parameter_list, image_size, rng=rng, distance=distance, offset=offset)
if(len(objects) == 0):
f = open(labelname, "w")
f.write("\n")
f.close()
return
image, info_dict = ig.generateImage(objects, image_size, snr=test_noiselevels[i], rng=rng)
image = (image).astype(np.uint16) #cast image to 16 bit uint for tiff
image = Image.fromarray(image).save(fname, quality=100)
objects[["x","w"]] /= image_size[1] # scale x and w to [0,1]
objects[["y","h"]] /= image_size[0] # scale y and h to [0,1]
# turn label into int:
objects["label"]=pd.factorize(objects["label"])[0]
# add keypoint coordinates
objects[["kpt_x", "kpt_y"]] = objects[["x", "y"]]
np.savetxt(labelname, objects.values, fmt='%g')# save the labels to disk (in txt files) in the form: class x y w h intensity(unused) size(unused) kpt_x kpt_y
with Pool(initializer=init) as pool:
for _ in tqdm(pool.imap_unordered(call,range(nimages[i])),total=nimages[i], desc=prefix):
pass
global rng
rng = np.random.default_rng()
test_snr1.0: 100%|██████████| 1000/1000 [01:08<00:00, 14.52it/s]
test_snr2.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.71it/s]
test_snr3.0: 100%|██████████| 1000/1000 [01:06<00:00, 15.10it/s]
test_snr4.0: 100%|██████████| 1000/1000 [01:06<00:00, 15.06it/s]
test_snr5.0: 100%|██████████| 1000/1000 [01:05<00:00, 15.31it/s]
test_snr6.0: 100%|██████████| 1000/1000 [01:06<00:00, 15.00it/s]
test_snr7.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.92it/s]
test_snr8.0: 100%|██████████| 1000/1000 [01:06<00:00, 15.09it/s]
test_snr9.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.76it/s]
test_snr10.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.74it/s]
test_snr11.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.74it/s]
test_snr12.0: 100%|██████████| 1000/1000 [01:08<00:00, 14.52it/s]
test_snr13.0: 100%|██████████| 1000/1000 [01:06<00:00, 15.09it/s]
test_snr14.0: 100%|██████████| 1000/1000 [01:05<00:00, 15.19it/s]
test_snr15.0: 100%|██████████| 1000/1000 [01:06<00:00, 15.01it/s]
test_snr16.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.91it/s]
test_snr17.0: 100%|██████████| 1000/1000 [01:06<00:00, 14.97it/s]
test_snr18.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.76it/s]
test_snr19.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.81it/s]
test_snr20.0: 100%|██████████| 1000/1000 [01:07<00:00, 14.85it/s]
Generate the corresponding yaml files. These contain metadata about the data.
subdir = '../datasets/Dataset_spots/'
file_path = '../datasets/spots_snr8-12.yaml'
dict = {}
dict["train"]=os.getcwd() + '/' + subdir + "images/" + "train_snr8-12" #directory of training images
dict["val"]=os.getcwd() + '/' + subdir + "images/" + "val_snr8-12" #directory of validation images
# the label directory is inferred automatically by replacing images/ with labels/
dict["kpt_shape"] = [1,2] #the shape of the keypoints: [n_keypoints, dim]. here, we use 1 keypoint (particle center), having 2 dimensions
dict["num_extra_parameters"] = 2 # extra parameters provided in the data. here: intensity, size
dict["extra_param_names"] = ["intensity", "size"]
dict['nc'] = 1 # number of classes
dict['names'] = ["Spot"] #class names
with open(file_path, 'w') as file:
yaml.dump(dict, file, default_flow_style=True) #store to disk
file_path = '../datasets/spots_snr15-20.yaml'
dict = {}
dict["train"]=os.getcwd() + '/' + subdir + "images/" + "train_snr15-20"
dict["val"]=os.getcwd() + '/' + subdir + "images/" + "val_snr15-20"
dict["kpt_shape"] = [1,2] #the shape of the keypoints: [n_keypoints, dim]. here, we use 1 keypoint (particle center), having 2 dimensions
dict["num_extra_parameters"] = 2 # extra parameters provided in the data. here: intensity, size
dict["extra_param_names"] = ["intensity", "size"]
dict['nc'] = 1 # number of classes
dict['names'] = ["Spot"] #class names
with open(file_path, 'w') as file:
yaml.dump(dict, file, default_flow_style=True)
#for the noise levels, create separate files
levels_dir = subdir+"/levels"
if not os.path.exists(levels_dir):
os.mkdir(levels_dir)
for folder in folders:
file_path = levels_dir + f'/dataset_{folder}.yaml'
print(file_path)
dict = {}
i_dir = os.getcwd() + '/' + subdir + "images/" + folder
dict["train"]=os.getcwd() + '/' + subdir + "images/" + "train"
dict["val"]=i_dir
dict["kpt_shape"] = [1,2]
dict["num_extra_parameters"] = 2
dict['nc'] = 1
dict['names'] = ["Spot"]
with open(file_path, 'w') as file:
yaml.dump(dict, file, default_flow_style=True)
Lets now train our model with the dataset!
from YOLOtrack11 import YOLOtrack11
# model = YOLOtrack11("yolo11n_zaxis.yaml")
model = YOLOtrack11("yolo11n_spots.pt")
results = model.train(data="datasets/spots_snr8-12.yaml", epochs=1, imgsz=(640,540), background=0,window=2**16-1, level=0, z=0, warmup_epochs=0, pose=1e5)#set z loss to 0 because we don't have z labels
model.save("yolo11n_spots_8-12.pt")
Show code cell output
New https://pypi.org/project/ultralytics/8.3.157 available 😃 Update with 'pip install -U ultralytics'
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
trainer: task=zaxis, mode=train, model=yolo11n_spots.pt, data=datasets/spots_snr8-12.yaml, epochs=1, time=None, patience=100, batch=16, imgsz=(640, 540), save=True, save_period=-1, cache=False, device=None, workers=8, project=None, name=train257, exist_ok=False, pretrained=True, optimizer=SGD, verbose=True, seed=0, deterministic=True, single_cls=False, rect=False, cos_lr=False, close_mosaic=10, resume=False, amp=False, fraction=1.0, profile=False, freeze=None, multi_scale=False, overlap_mask=True, mask_ratio=4, dropout=0.0, val=True, split=val, save_json=False, save_hybrid=False, conf=None, iou=0.7, max_det=300, half=False, dnn=False, plots=False, source=None, vid_stride=1, stream_buffer=False, visualize=False, augment=False, agnostic_nms=False, classes=None, retina_masks=False, embed=None, show=False, save_frames=False, save_txt=False, save_conf=False, save_crop=False, show_labels=True, show_conf=True, show_boxes=True, line_width=None, format=torchscript, keras=False, optimize=False, int8=False, dynamic=False, simplify=True, opset=None, workspace=4, nms=False, lr0=0.005, lrf=0.01, momentum=0.937, weight_decay=0.0005, warmup_epochs=0, warmup_momentum=0.8, warmup_bias_lr=0.1, box=7.5, cls=0.5, dfl=1.5, pose=100000.0, kobj=1.0, z=0, label_smoothing=0.0, nbs=64, hsv_h=0.0, hsv_s=0.0, hsv_v=0.0, degrees=0.0, translate=0.0, scale=0.0, shear=0.0, perspective=0.0, flipud=0.5, fliplr=0.5, bgr=0.0, mosaic=0.0, mixup=0.0, copy_paste=0.0, copy_paste_mode=flip, auto_augment=None, erasing=0.0, crop_fraction=1.0, cfg=None, tracker=botsort.yaml, background=0, level=0, window=65535, save_dir=/home/jupyter-till/git/ultralytics/runs/zaxis/train257
from n params module arguments
0 -1 1 176 ultralytics.nn.modules.conv.Conv [1, 16, 3, 2]
1 -1 1 4672 ultralytics.nn.modules.conv.Conv [16, 32, 3, 2]
2 -1 1 6640 ultralytics.nn.modules.block.C3k2 [32, 64, 1, False, 0.25]
3 -1 1 36992 ultralytics.nn.modules.conv.Conv [64, 64, 3, 2]
4 -1 1 26080 ultralytics.nn.modules.block.C3k2 [64, 128, 1, False, 0.25]
5 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
6 -1 1 87040 ultralytics.nn.modules.block.C3k2 [128, 128, 1, True]
7 -1 1 295424 ultralytics.nn.modules.conv.Conv [128, 256, 3, 2]
8 -1 1 346112 ultralytics.nn.modules.block.C3k2 [256, 256, 1, True]
9 -1 1 164608 ultralytics.nn.modules.block.SPPF [256, 256, 5]
10 -1 1 249728 ultralytics.nn.modules.block.C2PSA [256, 256, 1]
11 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
12 [-1, 6] 1 0 ultralytics.nn.modules.conv.Concat [1]
13 -1 1 111296 ultralytics.nn.modules.block.C3k2 [384, 128, 1, False]
14 -1 1 0 torch.nn.modules.upsampling.Upsample [None, 2, 'nearest']
15 [-1, 4] 1 0 ultralytics.nn.modules.conv.Concat [1]
16 -1 1 32096 ultralytics.nn.modules.block.C3k2 [256, 64, 1, False]
17 -1 1 36992 ultralytics.nn.modules.conv.Conv [64, 64, 3, 2]
18 [-1, 13] 1 0 ultralytics.nn.modules.conv.Concat [1]
19 -1 1 86720 ultralytics.nn.modules.block.C3k2 [192, 128, 1, False]
20 -1 1 147712 ultralytics.nn.modules.conv.Conv [128, 128, 3, 2]
21 [-1, 10] 1 0 ultralytics.nn.modules.conv.Concat [1]
22 -1 1 378880 ultralytics.nn.modules.block.C3k2 [384, 256, 1, True]
23 [16, 19, 22] 1 574303 YOLOtrack11.model.ZAxis [1, 2, [1, 2], [64, 128, 256]]
YOLO11n-zaxis summary: 211 layers, 2,733,183 parameters, 2,733,167 gradients, 6.9 GFLOPs
Transferred 625/625 items from pretrained weights
Freezing layer 'model.23.dfl.conv.weight'
WARNING ⚠️ updating to 'imgsz=640'. 'train' and 'val' imgsz must be an integer, while 'predict' and 'export' imgsz may be a [h, w] list or an integer, i.e. 'yolo export imgsz=640,480' or 'yolo export imgsz=640'
train: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/train_snr8-12.cache... 10000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 10000/10000 [00:00<?, ?it/s]
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/val_snr8-12.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
WARNING ⚠️ 'label_smoothing' is deprecated and will be removed in in the future.
optimizer: SGD(lr=0.005, momentum=0.937) with parameter groups 93 weight(decay=0.0), 106 weight(decay=0.0005), 105 bias(decay=0.0)
Image sizes 640 train, 640 val
Using 8 dataloader workers
Logging results to /home/jupyter-till/git/ultralytics/runs/zaxis/train257
Starting training for 1 epochs...
Epoch GPU_mem box_loss cls_loss dfl_loss zaxis_loss pose_loss kobj_loss Instances Size
1/1 4.44G 0.09117 0.1047 0.755 0 7.3 0 908 640: 100%|██████████| 625/625 [00:34<00:00, 18.18it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 32/32 [00:02<00:00, 12.08it/s]
all 1000 59836 1 1 0.995 0.995 3.28e+04 0.711
1 epochs completed in 0.010 hours.
Optimizer stripped from /home/jupyter-till/git/ultralytics/runs/zaxis/train257/weights/last.pt, 5.8MB
Optimizer stripped from /home/jupyter-till/git/ultralytics/runs/zaxis/train257/weights/best.pt, 5.8MB
Validating /home/jupyter-till/git/ultralytics/runs/zaxis/train257/weights/best.pt...
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
YOLO11n-zaxis summary (fused): 118 layers, 2,725,303 parameters, 0 gradients, 6.7 GFLOPs
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 32/32 [00:02<00:00, 15.66it/s]
all 1000 59836 1 1 0.995 0.995 3.28e+04 0.711
Speed: 0.0ms preprocess, 0.5ms inference, 0.0ms loss, 0.2ms postprocess per image
Lets now test our model out:
from YOLOtrack11 import YOLOtrack11
model = YOLOtrack11("yolo11n_spots_8-12.pt")
print("loaded")
dataset_path = "../datasets/Dataset_spots/images/test_snr5.0"
imgsz=640,540
test_images = os.listdir(dataset_path)
random_image = lambda: dataset_path+"/"+test_images[np.random.randint(0,len(test_images))]
loaded
Show code cell source
def plot_result(ax,img,cls,bboxes=repeat(None),z=None,kpts=None, conf=None,vmin=1.95e4,vmax=2.05e4):
is_conf = conf is not None
if not is_conf:
conf = np.zeros_like(cls)
if isinstance(img, PIL.Image.Image):
pass
elif(type(img) == str):
img = PIL.Image.open(img)
print(vmin,vmax)
ax.imshow(img,cmap="grey",vmin=vmin,vmax=vmax)
ax.axis("off")
for bbox,kpt,c in zip(bboxes, kpts,conf):
if(bbox is not None):
x,y,w,h = bbox.numpy() if not isinstance(bbox, np.ndarray) else bbox
rect = Rectangle((x-0.5*w,y-0.5*h),h,w, linewidth=1, edgecolor="yellow", facecolor='none')
tx,ty = rect.get_xy()
ax.add_patch(rect)
tx+=6
ty-=12
else:
tx,ty = kpt
ty-=40
tx-=50
circle = Circle(kpt.squeeze(),1, facecolor="red",edgecolor="red")
ax.add_patch(circle)
if is_conf:
ax.text(tx,ty, f"{c*100:.0f}%", fontsize="small",bbox=dict(facecolor='white', alpha=0.5,))
return bboxes
if not plt.get_fignums() : plt.figure(figsize=(12,5))
else: plt.clf()
image = random_image()
img = np.array(PIL.Image.open(image))
results, = model.predict(np.array(img), conf = 0.7, level=0, background=0)
# boxes2 = results.boxes2.cpu()
# results = results.cpu()
plt.subplot(1,2,1)
plt.title("Prediction")
kpt = results.keypoints
bbox = results.boxes
z = np.zeros((len(kpt)))
# plot_result(plt.gca(),img,z,bbox.xywh.cpu(),z,kpt.cpu(),conf=bbox.conf, vmin=None, vmax=None)

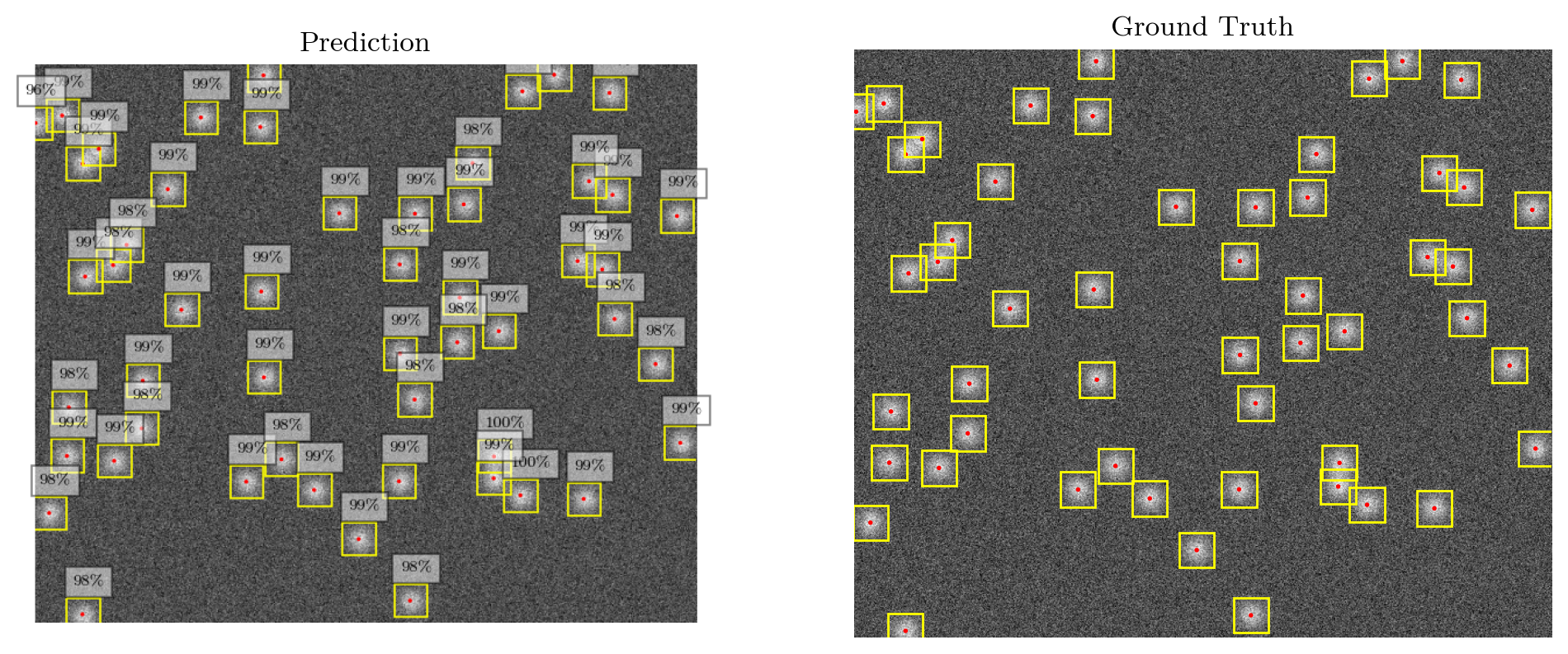

plt.imshow(results.plot())
plt.axis("off")
plt.subplot(1,2,2)
plt.title("Ground Truth")
plot_gt(image,plt.gca(),imgsz, vmin=None, vmax=None)
plt.show()
results.to_df() #print results dataframe
0: 544x640 52 Spots, 29.1ms
Speed: 0.9ms preprocess, 29.1ms inference, 0.5ms postprocess per image at shape (1, 3, 544, 640)
None None
| name | class | confidence | box | keypoints | z | |
|---|---|---|---|---|---|---|
| 0 | Spot | 0 | 0.99845 | {'x1': 454.38867, 'y1': 401.5827, 'x2': 486.40... | {'x': 469.69635009765625, 'y': 416.8154296875} | {'z': -1.0488699674606323, '(unused)': -0.5316... |
| 1 | Spot | 0 | 0.99575 | {'x1': 429.12033, 'y1': 363.26398, 'x2': 461.1... | {'x': 444.1501159667969, 'y': 379.28582763671875} | {'z': -0.3155600130558014, '(unused)': -0.0702... |
| 2 | Spot | 0 | 0.99341 | {'x1': 456.2196, 'y1': 10.27181, 'x2': 488.207... | {'x': 471.6224060058594, 'y': 26.113449096679688} | {'z': -0.39500001072883606, '(unused)': -1.057... |
| 3 | Spot | 0 | 0.99340 | {'x1': 30.99963, 'y1': 80.36482, 'x2': 63.0684... | {'x': 46.5235481262207, 'y': 96.21710968017578} | {'z': 0.05926999822258949, '(unused)': 0.26298... |
| 4 | Spot | 0 | 0.99296 | {'x1': 11.29617, 'y1': 33.48018, 'x2': 43.2828... | {'x': 26.595169067382812, 'y': 49.51639175415039} | {'z': 0.6833999752998352, '(unused)': -0.47876... |
| 5 | Spot | 0 | 0.99206 | {'x1': 428.07178, 'y1': 384.62256, 'x2': 460.0... | {'x': 443.7632751464844, 'y': 400.3846435546875} | {'z': -0.360260009765625, '(unused)': 0.790880... |
| 6 | Spot | 0 | 0.99162 | {'x1': 15.75287, 'y1': 362.80835, 'x2': 47.746... | {'x': 31.19702911376953, 'y': 378.7030029296875} | {'z': 0.0009599999757483602, '(unused)': -0.43... |
| 7 | Spot | 0 | 0.99160 | {'x1': 509.73969, 'y1': 174.45181, 'x2': 541.7... | {'x': 525.0051879882812, 'y': 190.24867248535156} | {'z': -0.12634000182151794, '(unused)': -0.269... |
| 8 | Spot | 0 | 0.99157 | {'x1': 433.39673, 'y1': 242.21719, 'x2': 465.3... | {'x': 448.74462890625, 'y': 258.0653991699219} | {'z': 0.10350000113248825, '(unused)': -0.5722... |
| 9 | Spot | 0 | 0.99149 | {'x1': 533.24207, 'y1': 182.69238, 'x2': 565.2... | {'x': 548.7119140625, 'y': 198.37135314941406} | {'z': -0.9698600172996521, '(unused)': -0.8475... |
| 10 | Spot | 0 | 0.99061 | {'x1': 543.1864, 'y1': 110.34048, 'x2': 575.16... | {'x': 558.679931640625, 'y': 126.2138671875} | {'z': -0.02565000019967556, '(unused)': -0.169... |
| 11 | Spot | 0 | 0.99020 | {'x1': 520.57391, 'y1': 97.08963, 'x2': 552.57... | {'x': 536.0918579101562, 'y': 113.06974029541016} | {'z': -0.1432500034570694, '(unused)': 0.12768... |
| 12 | Spot | 0 | 0.98983 | {'x1': 145.42633, 'y1': 35.57172, 'x2': 177.43... | {'x': 160.739990234375, 'y': 51.447818756103516} | {'z': 0.050280001014471054, '(unused)': -0.483... |
| 13 | Spot | 0 | 0.98970 | {'x1': 336.9281, 'y1': 387.3891, 'x2': 368.932... | {'x': 352.30133056640625, 'y': 403.27301025390... | {'z': 0.04839000105857849, '(unused)': -0.4381... |
| 14 | Spot | 0 | 0.98932 | {'x1': 46.41614, 'y1': 66.05319, 'x2': 78.4793... | {'x': 62.11166000366211, 'y': 81.77384948730469} | {'z': 0.8098300099372864, '(unused)': -0.48807... |
| 15 | Spot | 0 | 0.98884 | {'x1': 113.28403, 'y1': 104.95433, 'x2': 145.2... | {'x': 128.7715606689453, 'y': 120.79208374023438} | {'z': -0.2915700078010559, '(unused)': 0.15180... |
| 16 | Spot | 0 | 0.98853 | {'x1': 33.51456, 'y1': 189.43661, 'x2': 65.510... | {'x': 48.82320022583008, 'y': 205.25967407226562} | {'z': -0.4638499915599823, '(unused)': -0.4169... |
| 17 | Spot | 0 | 0.98843 | {'x1': 515.76465, 'y1': 404.54803, 'x2': 547.7... | {'x': 530.8435668945312, 'y': 420.3667297363281} | {'z': -0.0623599998652935, '(unused)': -0.2614... |
| 18 | Spot | 0 | 0.98834 | {'x1': 205.86484, 'y1': -5.1156, 'x2': 237.871... | {'x': 221.26718139648438, 'y': 10.648360252380... | {'z': -0.08206000179052353, '(unused)': -0.478... |
| 19 | Spot | 0 | 0.98788 | {'x1': 189.1944, 'y1': 387.82385, 'x2': 221.19... | {'x': 204.59280395507812, 'y': 403.63134765625} | {'z': -0.07006999850273132, '(unused)': -0.396... |
| 20 | Spot | 0 | 0.98779 | {'x1': 206.36411, 'y1': 286.6189, 'x2': 238.35... | {'x': 221.6929931640625, 'y': 302.7490234375} | {'z': 0.009440000168979168, '(unused)': -0.160... |
| 21 | Spot | 0 | 0.98762 | {'x1': 608.91644, 'y1': 350.29907, 'x2': 640.9... | {'x': 624.3041381835938, 'y': 366.15606689453125} | {'z': -0.5039200186729431, '(unused)': -0.4855... |
| 22 | Spot | 0 | 0.98760 | {'x1': 203.92493, 'y1': 203.92267, 'x2': 235.9... | {'x': 219.06910705566406, 'y': 219.67239379882... | {'z': -0.05420999974012375, '(unused)': -0.238... |
| 23 | Spot | 0 | 0.98745 | {'x1': 126.61062, 'y1': 221.50766, 'x2': 158.6... | {'x': 141.90545654296875, 'y': 237.41143798828... | {'z': -0.5934500098228455, '(unused)': -0.6944... |
| 24 | Spot | 0 | 0.98725 | {'x1': 89.15135, 'y1': 290.26636, 'x2': 121.12... | {'x': 104.6095962524414, 'y': 306.14031982421875} | {'z': -0.6975399851799011, '(unused)': -1.0777... |
| 25 | Spot | 0 | 0.98724 | {'x1': 337.82831, 'y1': 264.13217, 'x2': 369.8... | {'x': 353.34063720703125, 'y': 279.9650573730469} | {'z': -0.039739999920129776, '(unused)': 0.105... |
| 26 | Spot | 0 | 0.98722 | {'x1': 605.66241, 'y1': 130.90872, 'x2': 637.6... | {'x': 621.1229858398438, 'y': 146.7654571533203} | {'z': -0.23690000176429749, '(unused)': -0.546... |
| 27 | Spot | 0 | 0.98686 | {'x1': 399.47757, 'y1': 119.53226, 'x2': 431.4... | {'x': 414.8857727050781, 'y': 135.439697265625} | {'z': 0.23531000316143036, '(unused)': -0.3317... |
| 28 | Spot | 0 | 0.98666 | {'x1': 297.89886, 'y1': 443.21854, 'x2': 329.9... | {'x': 313.3101806640625, 'y': 459.16302490234375} | {'z': -0.015259999781847, '(unused)': -0.34516... |
| 29 | Spot | 0 | 0.98648 | {'x1': 254.87854, 'y1': 395.76569, 'x2': 286.8... | {'x': 270.2241516113281, 'y': 411.6671142578125} | {'z': -0.08113999664783478, '(unused)': -0.508... |
| 30 | Spot | 0 | 0.98607 | {'x1': 61.62058, 'y1': 367.84253, 'x2': 93.626... | {'x': 76.9057388305664, 'y': 383.5351867675781} | {'z': -0.3797700107097626, '(unused)': 0.16829... |
| 31 | Spot | 0 | 0.98605 | {'x1': 202.87679, 'y1': 44.76674, 'x2': 234.90... | {'x': 218.2605438232422, 'y': 60.645301818847656} | {'z': -0.7087200284004211, '(unused)': -0.7812... |
| 32 | Spot | 0 | 0.98550 | {'x1': 395.59991, 'y1': 209.77979, 'x2': 427.5... | {'x': 410.943603515625, 'y': 225.6527862548828} | {'z': 0.5764399766921997, '(unused)': -0.44786... |
| 33 | Spot | 0 | 0.98520 | {'x1': 352.12585, 'y1': 128.67172, 'x2': 384.1... | {'x': 367.6582946777344, 'y': 144.52285766601562} | {'z': -0.40143001079559326, '(unused)': 0.5516... |
| 34 | Spot | 0 | 0.98503 | {'x1': 279.09735, 'y1': 128.2417, 'x2': 311.09... | {'x': 294.4912109375, 'y': 144.0572509765625} | {'z': 0.293720006942749, '(unused)': -0.213239... |
| 35 | Spot | 0 | 0.98499 | {'x1': 223.25951, 'y1': 366.11719, 'x2': 255.2... | {'x': 238.6258544921875, 'y': 382.0509948730469} | {'z': 0.017650000751018524, '(unused)': -0.330... |
| 36 | Spot | 0 | 0.98470 | {'x1': 351.91721, 'y1': 308.34253, 'x2': 383.9... | {'x': 367.3822326660156, 'y': 324.24664306640625} | {'z': -0.014560000039637089, '(unused)': -0.40... |
| 37 | Spot | 0 | 0.98459 | {'x1': 408.10101, 'y1': 79.82852, 'x2': 440.10... | {'x': 423.4658508300781, 'y': 95.66857147216797} | {'z': 0.12411999702453613, '(unused)': -0.3572... |
| 38 | Spot | 0 | 0.98358 | {'x1': 540.46283, 'y1': 11.82071, 'x2': 572.46... | {'x': 555.801513671875, 'y': 27.6430606842041} | {'z': -0.8114500045776367, '(unused)': -0.7148... |
| 39 | Spot | 0 | 0.98357 | {'x1': 87.99037, 'y1': 336.29224, 'x2': 119.99... | {'x': 103.45982360839844, 'y': 352.1165466308594} | {'z': -0.22312000393867493, '(unused)': 0.4206... |
| 40 | Spot | 0 | 0.98343 | {'x1': 584.92041, 'y1': 273.99628, 'x2': 616.9... | {'x': 600.3150024414062, 'y': 289.9287414550781} | {'z': 0.3510800004005432, '(unused)': -0.52626... |
| 41 | Spot | 0 | 0.98319 | {'x1': -1.27251, 'y1': 418.07477, 'x2': 30.738... | {'x': 14.083209991455078, 'y': 433.9892272949219} | {'z': 0.3756600022315979, '(unused)': -0.28567... |
| 42 | Spot | 0 | 0.98151 | {'x1': 337.53781, 'y1': 177.82043, 'x2': 369.5... | {'x': 352.94207763671875, 'y': 193.58792114257... | {'z': -0.2790899872779846, '(unused)': 0.16873... |
| 43 | Spot | 0 | 0.98086 | {'x1': 393.14984, 'y1': 252.96042, 'x2': 425.1... | {'x': 408.6138916015625, 'y': 268.8370361328125} | {'z': -0.2449599951505661, '(unused)': 0.22044... |
| 44 | Spot | 0 | 0.98065 | {'x1': 486.87518, 'y1': -5.62891, 'x2': 518.87... | {'x': 502.29595947265625, 'y': 10.088509559631... | {'z': -0.23973000049591064, '(unused)': -0.505... |
| 45 | Spot | 0 | 0.98032 | {'x1': 347.77759, 'y1': 502.85684, 'x2': 379.7... | {'x': 363.0234680175781, 'y': 518.6696166992188} | {'z': -0.2752000093460083, '(unused)': -0.1840... |
| 46 | Spot | 0 | 0.97986 | {'x1': 17.77096, 'y1': 315.86493, 'x2': 49.775... | {'x': 33.1440315246582, 'y': 331.84716796875} | {'z': 0.13955999910831451, '(unused)': -0.3315... |
| 47 | Spot | 0 | 0.97956 | {'x1': 60.46625, 'y1': 178.37817, 'x2': 92.492... | {'x': 75.89572143554688, 'y': 194.2646026611328} | {'z': -1.174180030822754, '(unused)': -1.02040... |
| 48 | Spot | 0 | 0.97920 | {'x1': 545.45563, 'y1': 230.59537, 'x2': 577.4... | {'x': 560.6781616210938, 'y': 246.30990600585938} | {'z': -0.28571000695228577, '(unused)': -0.396... |
| 49 | Spot | 0 | 0.97641 | {'x1': 73.4754, 'y1': 158.67316, 'x2': 105.514... | {'x': 88.98802185058594, 'y': 174.60047912597656} | {'z': -0.8868399858474731, '(unused)': -0.7769... |
| 50 | Spot | 0 | 0.97594 | {'x1': 31.17584, 'y1': 516.07214, 'x2': 63.122... | {'x': 46.24225997924805, 'y': 531.9324340820312} | {'z': 0.09358000010251999, '(unused)': -0.3732... |
| 51 | Spot | 0 | 0.95577 | {'x1': -14.68774, 'y1': 41.23734, 'x2': 17.269... | {'x': 0.9134699702262878, 'y': 56.781700134277... | {'z': -0.36566999554634094, '(unused)': 0.4220... |

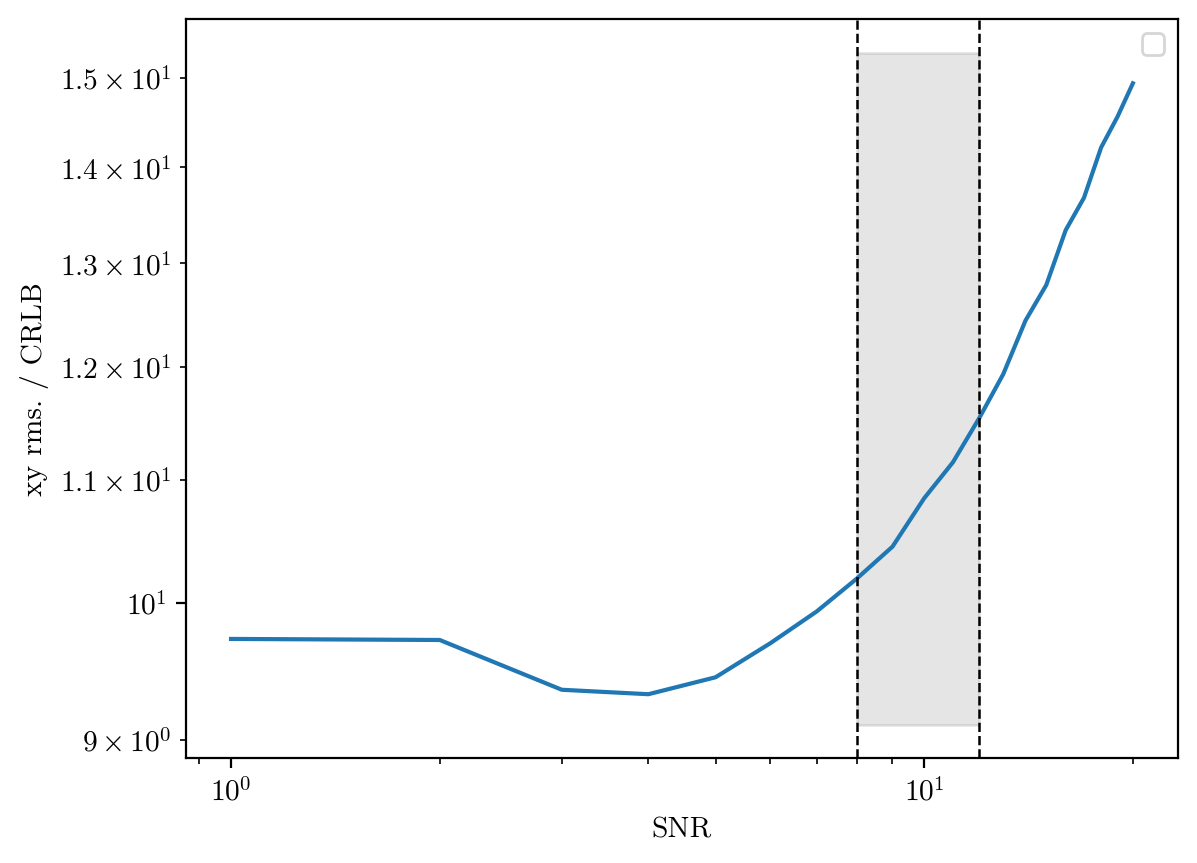

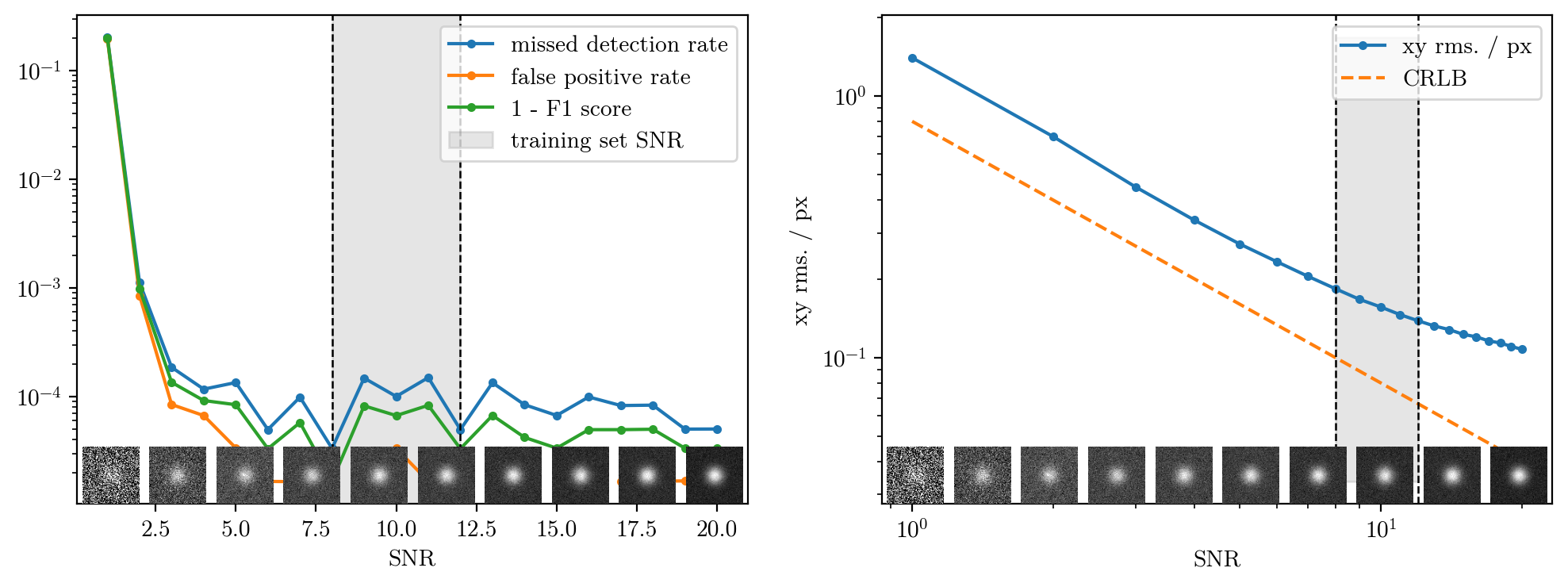

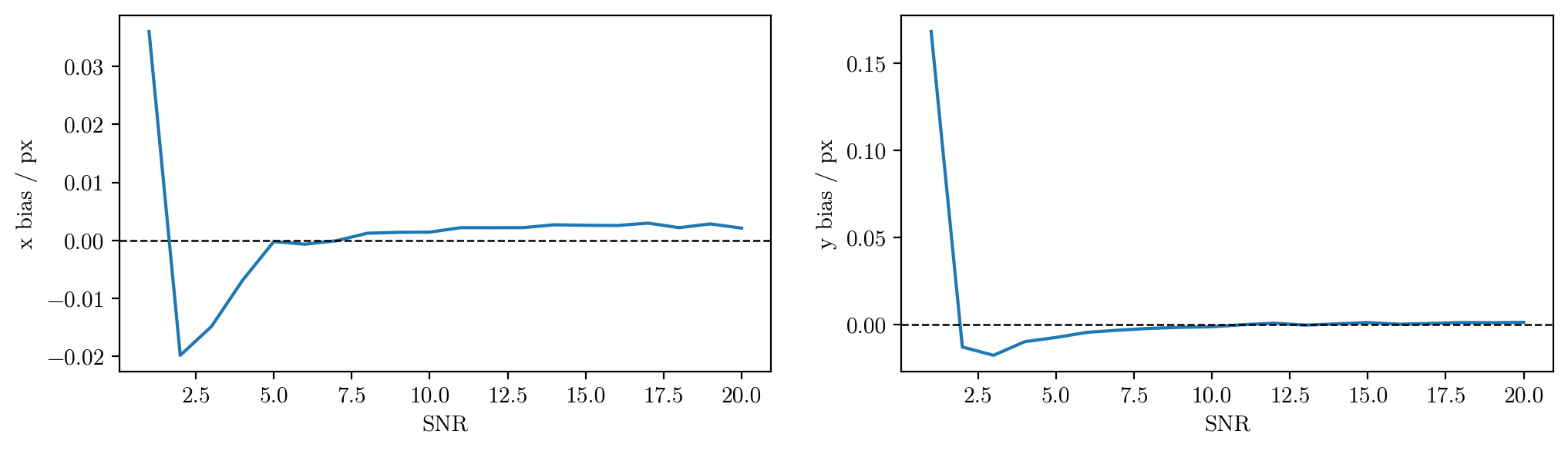

Next, lets look at the validation scores
snr_range = [1,20]
snrlevels = np.linspace(*snr_range, 20)
r,xy_rms, z_rms, kpt_pairs = [],[],[],[]
for i, snr in enumerate(snrlevels):
fname = f'../datasets/Dataset_spots/levels/dataset_test_snr{snr}.yaml'
res = model.val(conf=0.9,data=fname, workers=0, background=0)
r.append(res.all_box_results)
xy_rms.append(res.xy_rms)
z_rms.append(res.z_rms)
kpt_pairs.append(res.kpt_pairs)
del res
recall = np.array([res["r"] for res in r]).squeeze()
precision = np.array([res["p"] for res in r]).squeeze()
np.savez("spots_validation.npz", recall=recall, precision=precision, xy_rms=np.array(xy_rms))
Show code cell output
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr1.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.43it/s]
all 1000 60179 0.996 0.988 0.992 0.813 3.28e+04 1.77
Speed: 0.1ms preprocess, 0.6ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr2.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.83it/s]
all 1000 59890 1 1 0.995 0.945 3.28e+04 0.703
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr3.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.83it/s]
all 1000 59146 1 1 0.995 0.981 3.28e+04 0.449
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr4.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.85it/s]
all 1000 59792 1 1 0.995 0.992 3.28e+04 0.336
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr5.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.79it/s]
all 1000 59366 1 1 0.995 0.995 3.28e+04 0.272
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr6.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.78it/s]
all 1000 60315 1 1 0.995 0.995 3.28e+04 0.233
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr7.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.67it/s]
all 1000 60693 1 1 0.995 0.995 3.28e+04 0.205
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr8.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.84it/s]
all 1000 59994 1 1 0.995 0.995 3.28e+04 0.184
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr9.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.76it/s]
all 1000 60798 1 1 0.995 0.995 3.28e+04 0.168
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr10.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.12it/s]
all 1000 59803 1 1 0.995 0.995 3.28e+04 0.157
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr11.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.67it/s]
all 1000 60149 1 1 0.995 0.995 3.28e+04 0.146
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr12.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.76it/s]
all 1000 60333 1 1 0.995 0.995 3.28e+04 0.139
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr13.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.68it/s]
all 1000 59609 1 1 0.995 0.995 3.28e+04 0.132
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr14.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.78it/s]
all 1000 59375 1 1 0.995 0.995 3.28e+04 0.128
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr15.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.66it/s]
all 1000 59628 1 1 0.995 0.995 3.28e+04 0.123
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr16.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.67it/s]
all 1000 60449 1 1 0.995 0.995 3.28e+04 0.12
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr17.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.58it/s]
all 1000 60427 1 1 0.995 0.995 3.28e+04 0.116
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr18.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.27it/s]
all 1000 59911 1 1 0.995 0.995 3.28e+04 0.114
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr19.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.39it/s]
all 1000 59731 1 1 0.995 0.995 3.28e+04 0.111
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Ultralytics 8.3.79 🚀 Python-3.12.6 torch-2.5.1+cu124 CUDA:0 (NVIDIA GeForce RTX 4090, 24202MiB)
val: Scanning /home/jupyter-till/git/YOLOTrack11/datasets/Dataset_spots/labels/test_snr20.cache... 1000 images, 0 backgrounds, 0 corrupt: 100%|██████████| 1000/1000 [00:00<?, ?it/s]
Class Images Instances Box(P R mAP50 mAP50-95) z rms. xy rms.: 100%|██████████| 63/63 [00:04<00:00, 14.24it/s]
all 1000 59596 1 1 0.995 0.995 3.28e+04 0.108
Speed: 0.1ms preprocess, 0.5ms inference, 0.0ms loss, 0.7ms postprocess per image
Show code cell content
# calculate the CRLB
import image_generator as ig
objects = ig.pd.DataFrame({"label":"Spot", "i":2**15, "s":8, "x":40,"y":40}, index=[0])
img, _ = ig.generateImage(objects, (80,80),noise=0, refstack=np.zeros((40,40,40)), background=0)
# img += 2e4
# img /= img.max()
# print(img.max())
img = img.round().astype(np.uint16)
def derivative(psf, axis, delta=0.1): # delta : small shift in x or y
shift_vec = [0, 0]
shift_vec[axis] = delta
psf_forward = (1-delta)*psf+(delta*np.roll(psf, shift=1, axis=axis)).round().astype(np.uint16)
shift_vec[axis] = -delta
psf_backward = (1-delta)*psf+(delta*np.roll(psf, shift=-1, axis=axis)).round().astype(np.uint16)
return (psf_forward - psf_backward) / (2 * delta)
dh_dx = derivative(img, axis=1) # x-axis derivative
dh_dy = derivative(img, axis=0) # y-axis derivative
plt.imshow(dh_dy)
plt.colorbar()
# Compute Fisher Information Matrix (FIM)
I_xx = np.sum(dh_dx**2)
I_yy = np.sum(dh_dy**2)
I_xy = np.sum(dh_dx * dh_dy)
FIM = np.array([[I_xx, I_xy],
[I_xy, I_yy]])
print(FIM)
CRLB_0 = np.sqrt(np.diag(np.linalg.inv(FIM)))
snr_range = [1,20]
snrlevels = np.linspace(*snr_range, 20)
CRLB = np.sqrt((2**15/np.array(snrlevels))**2+1/12) * np.mean(CRLB_0)
print(f"CRLB (x,y) at SNR=1: {CRLB}")
[[ 1.6734e+09 0]
[ 0 1.6734e+09]]
CRLB (x,y) at SNR=1: [ 0.80103 0.40052 0.26701 0.20026 0.16021 0.13351 0.11443 0.10013 0.089004 0.080103 0.072821 0.066753 0.061618 0.057217 0.053402 0.050065 0.04712 0.044502 0.04216 0.040052]
from matplotlib.offsetbox import AnnotationBbox, OffsetImage
def place_images(ax, images, xmin=0.05,xmax=0.95, vmin=None, vmax=None):
x_range = np.linspace(xmin, xmax, 11)
for x, image in zip(x_range, images):
im = OffsetImage(image, zoom=0.32, cmap="gray")
if vmin is not None and vmax is not None:
im.get_children()[0].set_clim(vmin, vmax)
ab = AnnotationBbox(im, (x, 0), xycoords="axes fraction", frameon=False, pad=0, box_alignment=(0.5, 0))
ax.add_artist(ab)
recall = np.array([res["r"] for res in r]).squeeze()
precision = np.array([res["p"] for res in r]).squeeze()
f1 = 2 * (recall * precision) / (recall + precision)
images = [PIL.Image.open(f"spot_at_snr/{snr}.png") for snr in np.linspace(1,20,20)[::2]]
plt.figure(figsize=(12,4))
plt.subplot(1,2,1)
place_images(plt.gca(), images, xmin=0.05,xmax=1.05)
plt.plot(snrlevels, 1-recall[:,7], ".-",label="missed detection rate")
plt.plot(snrlevels, 1-precision[:,7], ".-",label="false positive rate")
plt.plot(snrlevels, 1-f1[:,7], ".-",label="1 - F1 score")
plt.xlabel("SNR")
# plt.xscale("log")
plt.yscale("log")
plt.ylim(*plt.ylim()) #quick fix to fix fill
plt.axvline(8,0,1,ls="dashed", lw=0.9,c="k")
plt.axvline(12,0,1,ls="dashed", lw=0.9,c="k")
plt.fill_between((8,12),*plt.ylim(), color="grey", alpha=0.2,label="training set SNR")
plt.legend(loc="upper right")
plt.subplot(1,2,2)
place_images(plt.gca(), images, xmin=0.05,xmax=1.05)
plt.plot(snrlevels, np.array(xy_rms)[:,7], ".-",label="xy rms. / px")
plt.plot(snrlevels, CRLB, "--", label="CRLB")
plt.legend(loc="upper right")
plt.xscale("log")
plt.yscale("log")
plt.xlabel("SNR")
plt.ylabel("xy rms. / px")
# plt.ylim(0.3e-1,2) #quick fix to fix fill
plt.axvline(8,0,1,ls="dashed", lw=0.9,c="k")
plt.axvline(12,0,1,ls="dashed", lw=0.9,c="k", label="training set SNR")
plt.fill_between((8,12),*plt.ylim(), color="grey", alpha=0.2)
plt.show()
plt.figure()
# place_images(plt.gca(), images, xmin=0.05,xmax=1.05)
plt.plot(snrlevels, np.array(xy_rms)[:,7]/(1/snrlevels * CRLB.mean()))
plt.legend(loc="upper right")
plt.xscale("log")
plt.yscale("log")
plt.xlabel("SNR")
plt.ylabel("xy rms. / CRLB")
# plt.ylim(0.3e-1,2) #quick fix to fix fill
plt.axvline(8,0,1,ls="dashed", lw=0.9,c="k")
plt.axvline(12,0,1,ls="dashed", lw=0.9,c="k", label="training set SNR")
plt.fill_between((8,12),*plt.ylim(), color="grey", alpha=0.2)
plt.show()
/tmp/ipykernel_3742084/1627014097.py:41: UserWarning: No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
plt.legend(loc="upper right")
It seems, we are proportional to the theoretical limit at first, but plateau at an rms ~0.1px for low noise. This might be because we have not trained in the high noise region, but compared to https://doi.org/10.1038/s41467-022-35004-y, where they train on similar noise, our performance is worse.
plt.figure(figsize=(12,3))
x_bias = [np.mean(np.subtract(*kpt[6][0])) for kpt in kpt_pairs]
y_bias = [np.mean(np.subtract(*kpt[6][1])) for kpt in kpt_pairs]
plt.subplot(121)
plt.plot(snrlevels, x_bias)
plt.ylabel("x bias / px")
plt.axhline(0,0,1, lw=0.9,ls="--",c="k")
plt.xlabel("SNR")
plt.subplot(122)
plt.plot(snrlevels, y_bias)
plt.axhline(0,0,1, lw=0.9,ls="--",c="k")
plt.ylabel("y bias / px")
plt.xlabel("SNR")
Text(0.5, 0, 'SNR')
No significant bias
